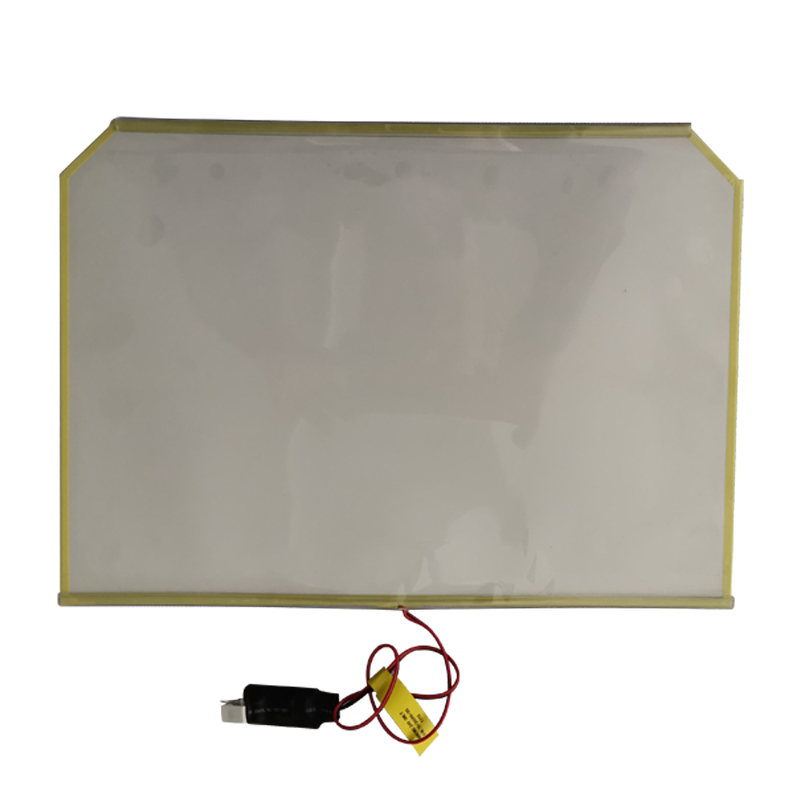

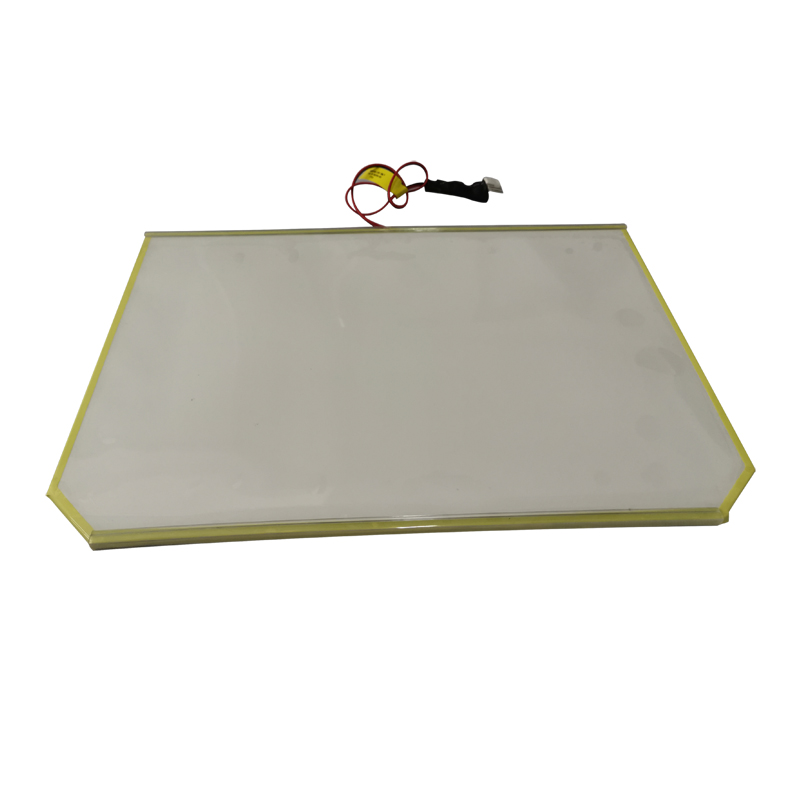

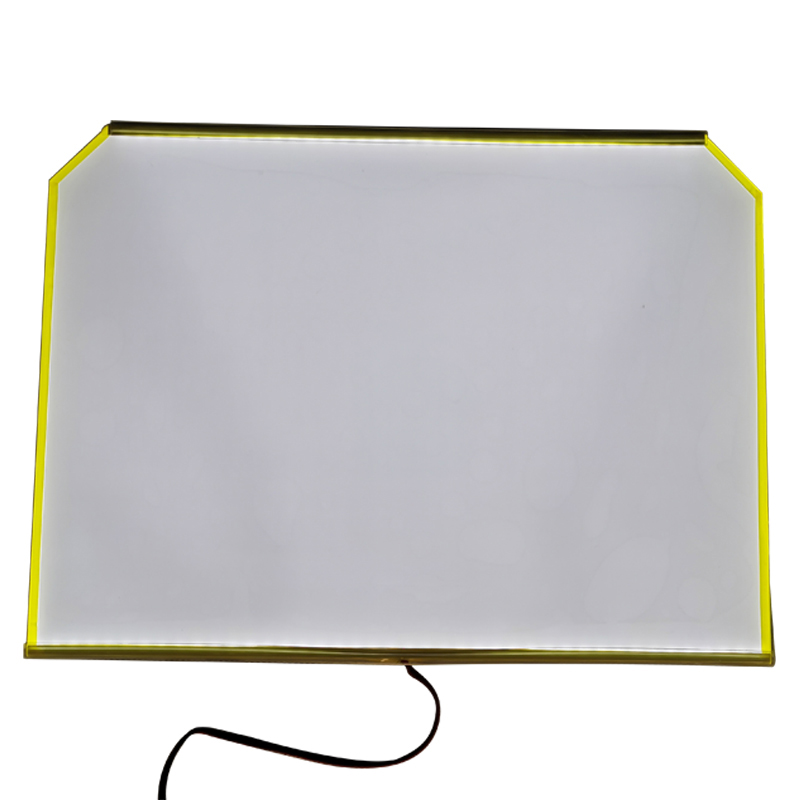

70-36596-00 ARISTOCRAT VIRIDIAN BELLY GLASS EDGE-LIT LED PANEL W/ HARNESS

Custom large-sized LED edge-lit panel for entertainments machines.

Send Email

Large-size LED edge-lit panel for Entertainments Machines

Part No.: 70-36596-00

SPECIFICATIONS

Outline Dimension:	306mm217.5mm3mm

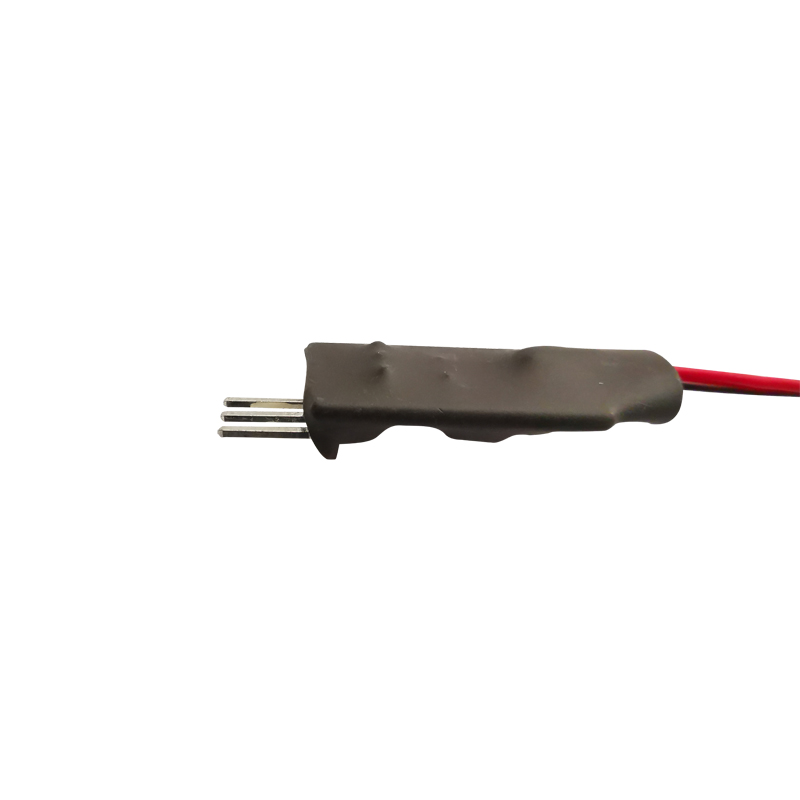

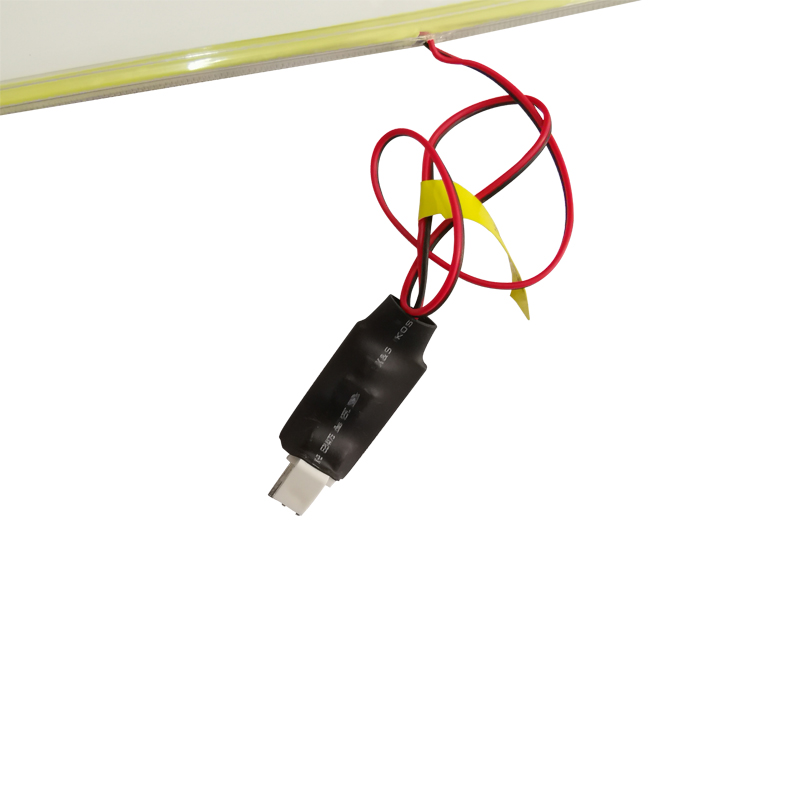

Connector:	MOLEX-4030
Voltage:	24V
Currency:	165mA
Beam Angle:	180°
Operation Temp.:	0° ~ 65°C
Storage Temp.:	-5° ~ 75°C

FEATURES

Large size, and could be installed directly to replace the old part.
Excellent illumination with low engergy consumption.
Large area, uniform, bright light emitting surface.
RoHS Compliant

APPLICATION

Installed on big entertainments machines and entertainments places machines such as Aristocrat Viridian Belly Glass with simple steps. Similar items are 70-36595-00 and 70-36590-00.
